Pneumatic type（horizontal）:BH-30．BH-60
- ◆A strong lineup of standardized BH series supporting up to a maximum weld force of 600N!
- ◆Effective for welding of an upright terminal in casing such as an ECU.
- ◆A preset type electrode holder and an electrode in optimal forms for your workpieces are available through custom manufacturing.
- ◆A displacement sensor and a force sensor (load cell) can be mounted as options.
| Model | BH-30 | BH-60 |
|---|---|---|
| Maximum force | 400N | 650N |
| Force range | 60 to 300N | 100 to 600N |
| Drive method | Air cylinder Steping motor |
Air cylinder |
| Electrode holder | Pre-set | |
| Force sensor | 500N max | 2kN max |
| Displacement sensor | Available |
|

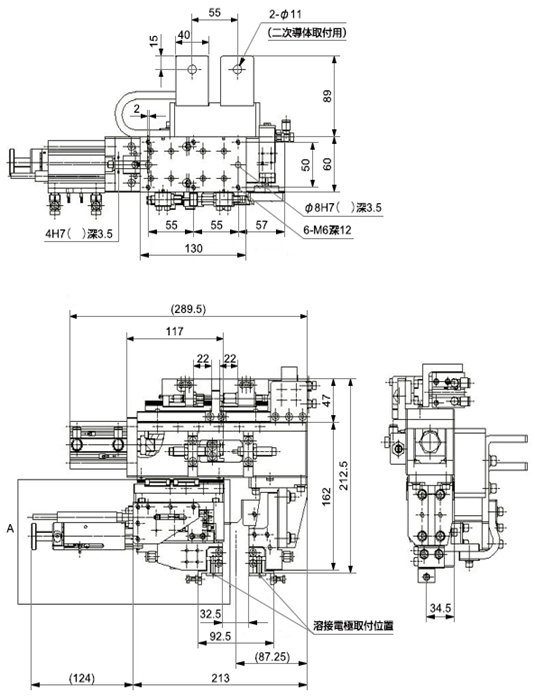

◆BH-30
