【NEW】WELD CHECKER® MM-400B
[ MM-400B ]
Measures current, voltage, welding time, weld force and displacement!
- ◆Supports a wide range of welding machines
The instrument supports single-phase AC, DC inverter, AC inverter, transistor, and capacitive discharge welding machines. - ◆Various measurement functions

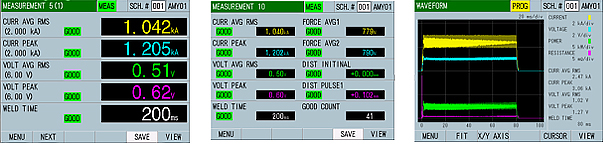

Easy to use with a touch panel.Display waveforme up to 4 items. Display and judge the parameters of the welding quality determinant up to 10 items. - Display screen
- ◆ISO17657-compliant measurement
In addition to the arithmetic mean RMS which is a conventional calculation system, the RMS in a whole current flow time which is the ISO17657（Resistance welding -- Welding current measurement for resistance welding -- ）-compliant calculation system can be selected. For the ISO17657-compliant measurement, the dedicated ISO-compliant toroidal coil is required.
- ◆Supports multiple languages
Languages available are Japanese, English, Chinese, Korean, German, French, and Spanish.
[ New Features ]
- ◆Envelope function
Making the OK/NG judgment by comparing a waveform within an allowable range and a monitored waveform, enables management with waveforms in addition to conventional measured values.
(Up to 3 points 2 waveforms)
- ◆Measurement with seam current
Measures current/voltage in AC welding or voltage in DC welding with a max. 5-minute moving measurement.
- ◆Measuring displacement Before-Welding
Measures Before-welding workpiece thickness, judge OK/NG of thickness.
[ Memory / Comumication / Printing ]
- ◆Memory
Measured values and waveforms can be saved in a built-in flash memory device/external USB.
- ◆Comunication
RS-232C, RS-485, Ethernet(TCP/IP) Simplex and duplex communication possible.(option)
- ◆Printing
Measured data and wavefome can be printing.
[ Judgment / Control function ]
- ◆By using a built-in force sensor / displacement sensor, it is possible to measure changes in pressurizing force / displacement amount even during production, display waveforms, judge OK/NG of welding.
- ◆Weld stop function shifted from 2 outputs to 3 outputs. Fine control of changes in displacement and applied pressure during welding.
- ◆With external input function, voltage input (± 10 V) current input (4 to 20 mA) from other sensors such as temperature sensor can be measured, waveform display, and OK/NG judge possible.

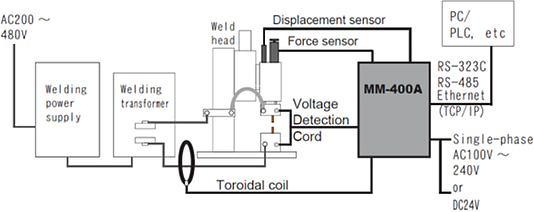

[ Configuration diagram ]

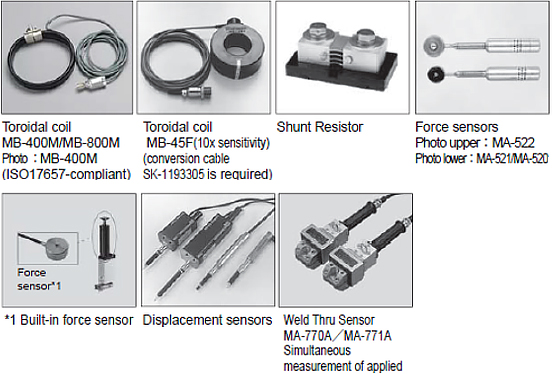

- ◆Accessories
[ MM-400B ]
| MODEL | MM-400B－00－00/－00－01*1 | ||||||
| Measurement Specification | Current | Range | 1×Sensitivity toroidal coil: 0.100～2.000kA/0.30～6.00kA/1.00～20.00kA/3.0～60.0kA/10.0～200.0kA 10×Sensitivity toroidal coil: 0.010～0.200kA/0.03～0.60kA/0.100～2.000kA/0.30～6.00kA/01.00～20.00kA Shunt Resistor: 25～500A/50～1000A |
||||
| Item | PEAK/RMS*2/Arithmetic mean RMS | ||||||
| Voltade | Range | 0.30～6.00V/1.0～20.0V | |||||
| Item | PEAK/RMS*2/Arithmetic mean RMS | ||||||
| Force*1 | Range | 4.90～98.06N(MA-520), 49.0～980.6N(MA-521), 245～4903N(MA-770A) | |||||
| Item | Mean RMS/maximum (peak) Before welding/After welding/Constant | ||||||
| Displacement*1 | Range | When the SENSOR STEP setting is 1 μm: ±30.000 mm/When the SENSOR STEP setting is 1 0μm: ±300.00 mm | |||||
| Item | Before welding/After welding/Constant | ||||||
| Measurement time | Current Voltage Displacement Power Resistance |
AC | ms-AC CYC-AC CYC***Hz-AC LONG CYC-AC |
1～5000ms 0.5～250.0CYC(50Hz), 0.5～300.0CYC(60Hz) 0.5～200.0CYC(M050: 50Hz), 0.5～300.0CYC(M063：63Hz), 0.5～2000.0CYC(M500: 500Hz) 0.5～500.0CYC(50Hz), 0.5～600.0CYC(60Hz) |
|||
| DC | CYC-DC ms-DC SHORT ms-DC |
0.5～100.0CYC(50Hz), 0.5～120.0CYC(60Hz) 1～2000ms 0.50～100.00ms(0.05ms単位) |
|||||
| Force・External | 1～10000ms | ||||||
| Seam | AC Seam: 5min(Current / Voltage) DC Seam: 5min(Voltage) | ||||||
| Conduction angle | 0～180degrees | ||||||
| Units | 127schedules | ||||||
| Body Specification | Power supply | Single-phase 100 to 240 V AC±10% (50/60 Hz) or 24 V DC10% | |||||
| Languages | Japanese, English, Chinese, Korean, German, French, Spanish. | ||||||
| Power consumption | 41W(49 W with printer running) | ||||||
| Outer dimensions(W×D×H)(excluding protrusions) | 172(W)mm×288(D)mm×266(H)mm | ||||||
| Mass | Approx. 5kg | ||||||
| Toroidal coil | MB-400M*2/MB-800M*2/MB-45F*3 | ||||||
| Shunt Resistor | DS 500A/100mV(25～500A) / DS 1000A/100mV(50～1000A) | ||||||
*1 With displacement / force function is only MM - 400B - 00 - 01.
*2 ISO17657 Compliance
*3 Conversion cable SK-1193305 is required.
* * Specifications subject to change without notice.

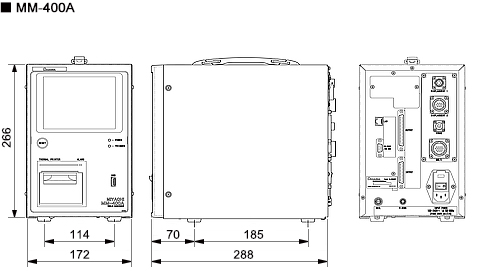

◆MM-400B
Dimensions in mm
