CT-110E．CY-210E
- ◆Welding mode for high-tensile steel plate.
- ◆Clear display with LED.
- ◆Fifteen weld schedules and nine current steps.
- ◆Three-step welding system with up-slope and down-slope features.
- ◆Primary and secondary constant current and power supply voltage compensated control can be selected.
- ◆Build-in current monitor and conduction angle monitor.
- ◆Panel cover for protection from oil mist.
- ◆Three counters.
-
- ◆[1] Condition No.
Displays the number to be registered with a certain weld schedule, and the number assigned for a registered weld-schedule for operation.
- ◆[2] Three-stage weld type
Even steel plates, which are relatively difficult to weld, can be handled by combining the three-stage welding.
-
- ◆[3] Welding current
Displays the welding current settings and measured currents at "W1: Weld I" to "Weld III".
- ◆[4] Current monitor/power angle monitor
The current monitor allows you to set the upper and lower limits within ±1 to 49% in reference to the set current and it monitors the current fluctuation. The conduction angle monitor allows you to set its monitoring range between 1° to 180° and it monitors the maximum conduction angle.

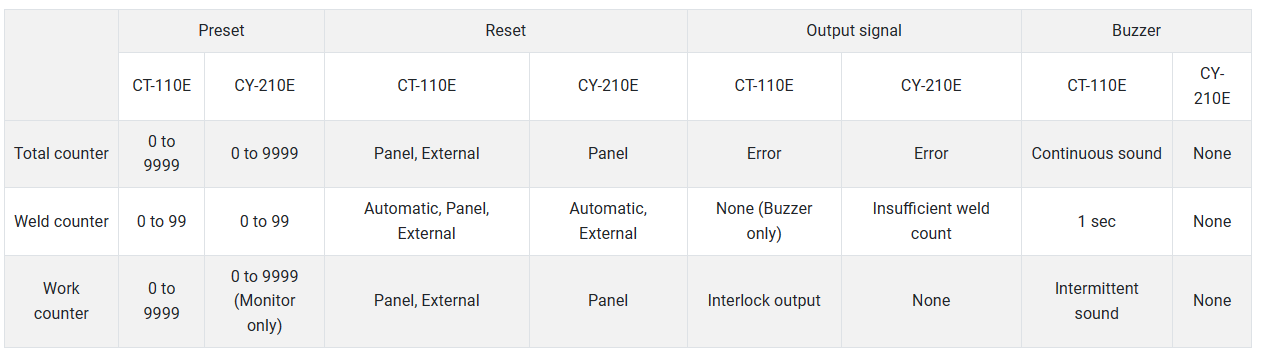

- ◆[5] Step-up/counters/turns ratio of a transformer
Various settings can be made by selecting a mode from 0 to 5.
- ◆[6] Status monitor
You can check the current timer status.
- ◆[7A] Welding/pressurization/count
When "Pressurize" is set for tip replacement or electrode polishing, while Run is input, Pressurize is output. When "Weld" is switched Off, only the sequence operates. Switches the count On and Off with "Count".
- ◆[7B] Welding On/Off
If it is switched off while tip dressing or test operation, only the sequence will be ran.
- ◆[8] Reset
Pressing this key while malfunction occurred will deactivate malfunction status.
|
Model |
CY-210E |
CT-110E |
|
Power requirements for welding power supply |
220 / 230 / 240 / 380 / 400 / 415 / 440 / 460 / 480VAC -25% +10%, 50/60Hz |
|
|
Power requirements for control power supply |
100 / 120 / 220 / 230 / 240VAC +/-20%, 50/60Hz |
|
|
Control method |
Primary or secondary current feedback type constant current control through thyristor phase control or Power requirements fluctuation compensation control type |
|
|
Timer setting |
15 schedules |
|
|
"SQUEEZE," "WELD II," "COOL II," "WELD III," "SLOPE II," "HOLD," "OFF" 00 - 99cycles |
||
|
"SLOPE I," 0 - 9cycles |
||
|
"WELD I" "COOL I" 0 - 9cycles |
"WELD I" "COOL I" 00 - 99cycles |
|
|
Pulsation count |
Switching used with Off mode 0 - 9 times |
|
|
Current setting range |
1.0 - 80.0kA (Maximum current setting: 5.0 - 80.0kA) |
|
|
Control speed |
Secondary current feedback type constant current control 1/2 cycle (Requires toroidal coil) |
|
|
Primary current feedback type constant current control 1cycle (Requires CT coil) |
||
|
Power requirements fluctuation compensation control 1cycle |
||
|
Current accuracy |
For secondary current feedback type constant current control |
|
|
a) ±2% max. of welding power supply voltage fluctuation +10% -15%(Accuracy based on error relative to full scale.) |
||
|
b) ±2% max. of resistance load fluctuation ±15%(Accuracy based on error relative to full scale.) |
||
|
c) ±2% max. of induction load fluctuation ±15%(Accuracy based on error relative to full scale.) |
||
|
Weld force output |
Either 2-series control power supply voltage (1A max.) or 24VDC (0.6A max.) |
|
|
Step up |
2 series, 9 stages |
1 series, 9 stages |
|
Counter 0 - 9999 |
||
|
Current increase ratio 50 - 200% of the set current in 1% step |
||
|
External input signals |
INTERLOCK/COUNT RESET (dip-switch-selectable):If a closed-contact signal is input,the system waits for the power to be turned on or the count to be reset. |
INTERLOCK/WELD No. SET (dip-switch-selectable):If a closed-contact signal is input, the system waits for the power to be turned on when the interlock function is selected. |
|
Current monitor(Abailabe only at constant current control) |
2.Lower linit: 0-49% 15 schedules |
|
|
Condition angle monitor** |
1 to 180 degree 15 schedules(NO monitoring at 0 degree) |
|
|
Error output |
|
|
|
Oprating ambient temperature |
0-45℃ |
|
|
Power consumption |
Control power 10W max. (excluding value output) |
|
|
Dimensions/Mass |
355(W) × 250(D) × 122(H)mm / 4.5kg |
110(W) × 250(D) × 355(H)mm / 4.5kg |
*Specifications subject to change without notice.
**The conduction-angle monitor does not work in the source-voltage flucation compensation control mode.This monitor cannot be used when the control is used for a welder of the single-phase recifier type.
Specification chart
|
CY-210E- |
Control power source |
Welding power source |
Valve output |
Data out function |
Toroidal coil |
|
|
00-00 |
100V |
220V |
440V |
100V |
Available |
MB-400L, |
|
00-01 |
120V |
240V |
480V |
DC24V |
||
|
00-03 |
220V |
220V |
380V |
220V |
||
|
00-10 |
230V |
230V |
400V |
DC24V |
||
|
CY-110E- |
Control power source |
Welding power source |
Valve output |
Data out function |
Toroidal coil |
|
|
00-00 |
100V |
220V |
440V |
100V |
Available |
MB-400L, |
|
00-01 |
120V |
240V |
480V |
DC24V |
||
|
00-03 |
220V |
220V |
380V |
220V |
||
|
00-08 |
230V |
230V |
400V |
DC24V |
||
